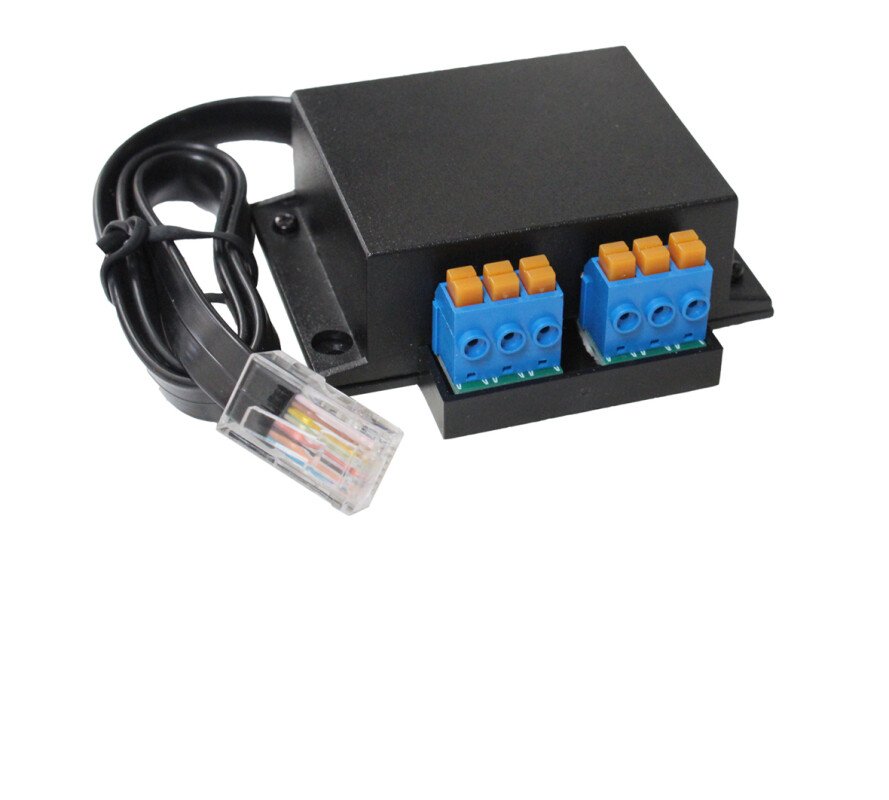

With this switching unit, the inverters from the PurePower(Plus) inverter can be remotely controlled by means of different signal types. The following functions are possible:

- Switching on by potential-free contact
- Switching off with potential-free contact
- Switching on by potential contact 5-32V
- Switching off with potential contact 5-32V
- Extra signal output (e.g. lamp/buzzer or switching contact)

The PPR-2 can easily be connected to the 'remote' output of the inverter. From the box, you can determine the desired further functions yourself.

Note: only suitable for the PurePower and PurePowerPlus series!
Applicable to all models from 600 Watt in 12Vdc and 24Vdc.

Specifications

Article no.System voltageDimensionsWeight
PPR-212/24Vdc6,8x5,7x2 cm
30 gr.

Downloads

NL-ENG-DU- Manual PPR-2.pdf > Download
