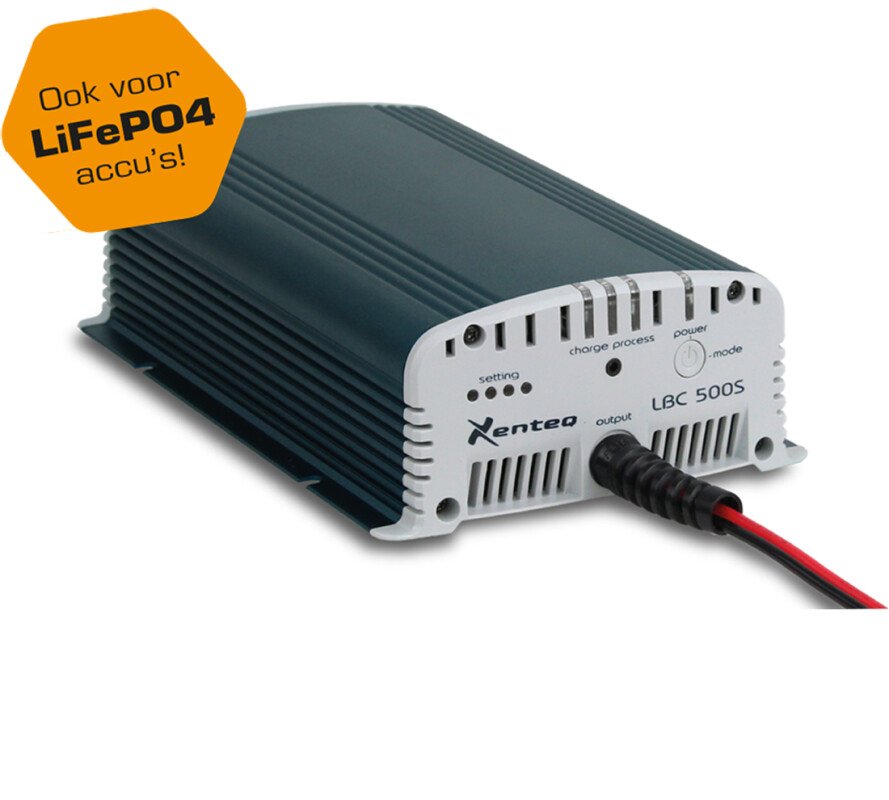

Multifunctional
The chargers of the LBC 500S series are multifunctional. They are easy to use and have many special features and protections, making them an absolute quality charger with professional maintenance of the battery. Due to all its features, the charger can be used for many applications at both recreational and professional level and from built-in to stand-alone use.

Charging process
The microprocessor controls and monitors the charger, battery and overall progress resulting in a highly advanced and above all safe charging process. This charger has a triple or even quadruple temperature protection! If an error is detected during the charging process, the charger will indicate this, so it's easy to determine which error is occurring. The charging process is of course fully automatic and will also start a new charge if necessary. The charger may remain connected/on during battery loading, starting an engine or when multiple power sources are present (such as a solar panel). When the charging process has been completed, the charger will go to the maintenance state (float charge) or after a longer period of time even to a special charging state to keep the battery in good condition (jogging). The LBC 500S series is therefore also suitable for permanent connection.

Adjustable
The LBC 500S contains multiple charging settings and can therefore be adjusted to many different battery types. Even LiFePO4 batteries! There is one push button on the front of the charger with which you can easily select the desired charging setting. The LBC 500S can also be used as a power supply. The charger has a special power supply to connect consumers directly. This creates a stable output voltage and equipment can work directly without the intervention of a battery.

Exterior
The fixed charging cable for connection to the battery has a length of 1 meter. The ends are equipped with terminal rings. The practical included battery clamps can easily be placed on the terminal rings, so this also makes the charger flexible in use. The LED indications for reading the charger status are readable from a wide angle.

Accessories
With the optionally available PC 1 clamps it is easy to use the charger in several places. The charger can simply be placed and taken out again. The temperature sensor T-sense1 is also optionally available. When connected, a correction will be made to the charging voltages based on the measured battery temperature.

Our value labels
Our value labels
Our value labels
Our value labels

Specifications

Article no.

Input

OutputCharge currentDimensionsWeight
LBC 512-10S230Vac12Vdc10Amp20,4x13,3x5,9 cm1kg
LBC 512-15S*230Vac12Vdc15Amp23,3x13,3x5,9 cm1,25kg
LBC 512-20S*230Vac12Vdc20Amp23,3x13,3x5,9 cm
1,25kg
LBC 524-5S230Vac24Vdc5Amp20,4x13,3x5,9 cm
1kg
LBC 524-10S*230Vac24Vdc10Amp23,3x13,3x5,9 cm
1kg
* = temporarily unavailable




Options

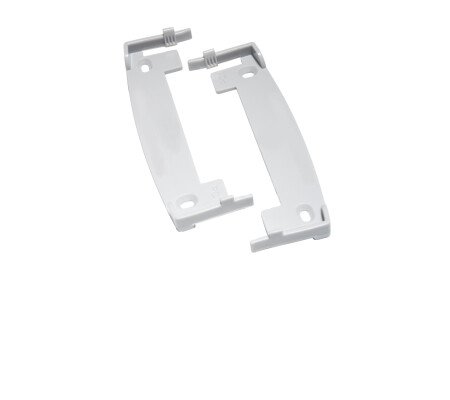

PC-1 Mounting brackets

PC-1 Mounting brackets

  • Ideal for flexible use
  • Applicable to:
    - LBC 400 Series
    - LBC 500 and LBC 500S Series
    - LBC 500XTR Series

Show

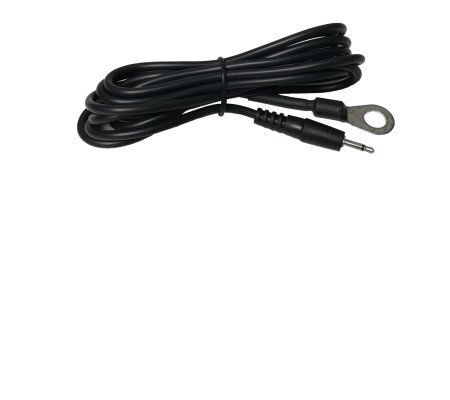

T-Sense1 - Temperature sensor

T-Sense1 - Temperature sensor

  • Temperature compensated charging
  • Suitable for the LBC 500S and LBC 500XTR series

Show

Downloads

ENG - Leaflet LBC 500S-series.pdf > Download
ENG - Techn. specs LBC 500S-series.pdf > Download
ENG - Dimensions LBC 500S-series.pdf > Download
NL - EN - DU - FR - Gebruiksaanw. LBC 500S V1.04A.pdf > Download
